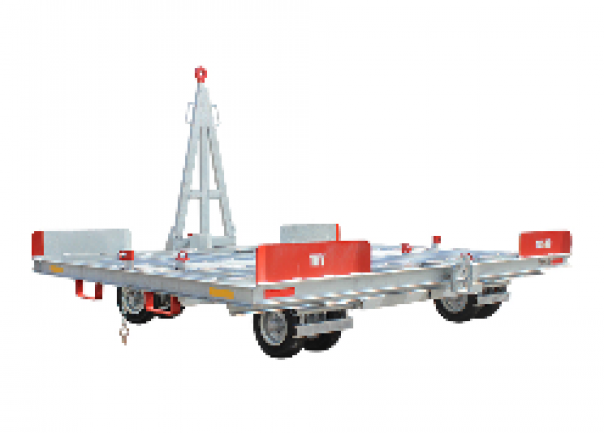

Pallet trolley PD from Turkish manufacturer Timsan.
CHASSIS
Made from steel profiles. The passageway is covered with perforated steel sheet to prevent slipping and ensure water runoff. Operations, loading and unloading are side loading on the PD 7000 model (side loading), and rear PD 14000 models (end loading).
STEERING AND BRAKING SYSTEM
The rear wheels are fixed and the front wheels can rotate 360°. Swivel type front wheels provide high maneuverability. The rear wheels are equipped with a brake system that works when the drawbar is in a vertical position.
VALKI
They are made of 2 ½" galvanized tubing with roller bearings at both ends. Rollers can be easily replaced. They are installed in two rows to facilitate the movement of pallets.
GUIDES
On both sides of the upper chassis, steel rails are installed to prevent the load from falling. There are manual stoppers for fixing pallets.
SURFACES
All surfaces and chassis are hot-dip galvanized for corrosion protection.
OPTIONS
• P2 stop system for PD7000
• Turntable for loading (PD 7000)
• Individual painting and logo application
• Rollers can be installed in 3 or 4 rows
• Spare wheel
