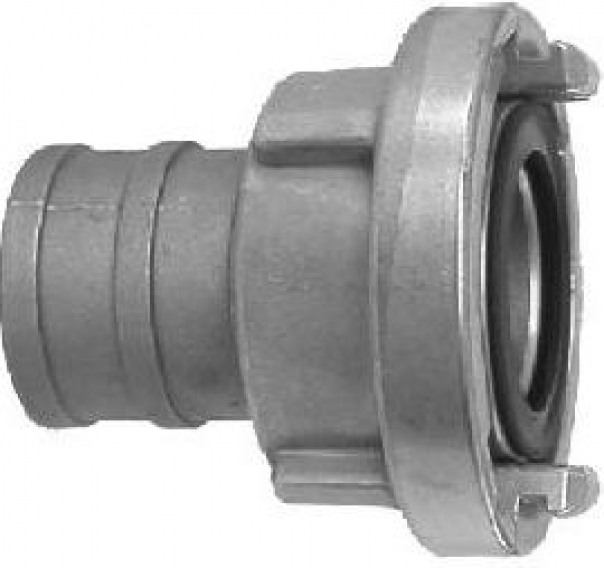

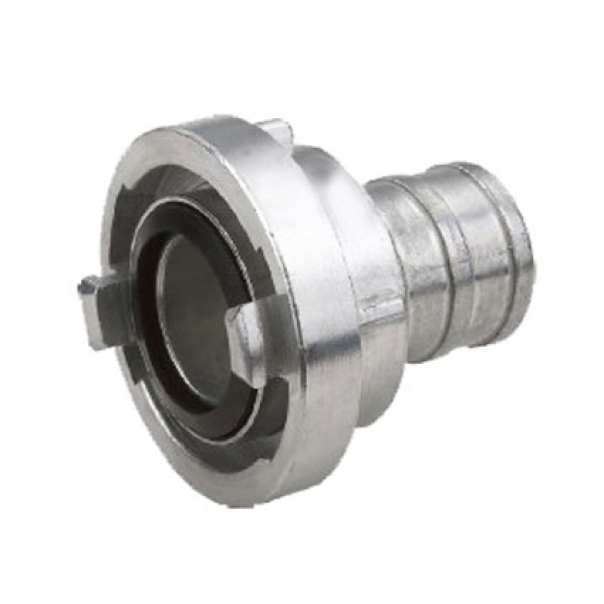

Head sleeve STORZ (Storz) DIN 14323 is a quick coupling
The principle of closing with each other is the same as that of the Bogdanov nuts due to two fangs that move along the outer bevels. Inside the parts are rubber seals that are tightly sealed when tightened. The connecting pressure head is suitable for all types of industrial suction, flat-folding and fire hoses. Are mounted in a sleeve by means of collars.
For threaded pipelines, the design of products with external and internal threads is provided. If it is necessary to plug the end of a hose or pipeline, a plug with a chain is used.
The working pressure for which the STORZ couplings are designed is 16 bar.
Execution material: aluminum, brass, stainless steel.
MAIN STORZ CONNECTION TYPES AND DIMENSIONS:
SUCTION UNDER SLEEVE: 25/25/31, 32/19/44, 32/25/44, 32/32/44, 38/38/52, 52/25/66, 52/32/66, 52/45 /66, 52/52/66, 52/60/66, 65/65/81, 75/65/89, 75/70/89, 75/75/89, 75/80/89, 90/90/105 100/100/115 110/100/133 110/110/133 125/125/148 135/135/159 150/150/160 165/150/188
HOW TO CHOOSE THE CORRECT PART (for example, a connector with a sleeve shank: 25/25/31)

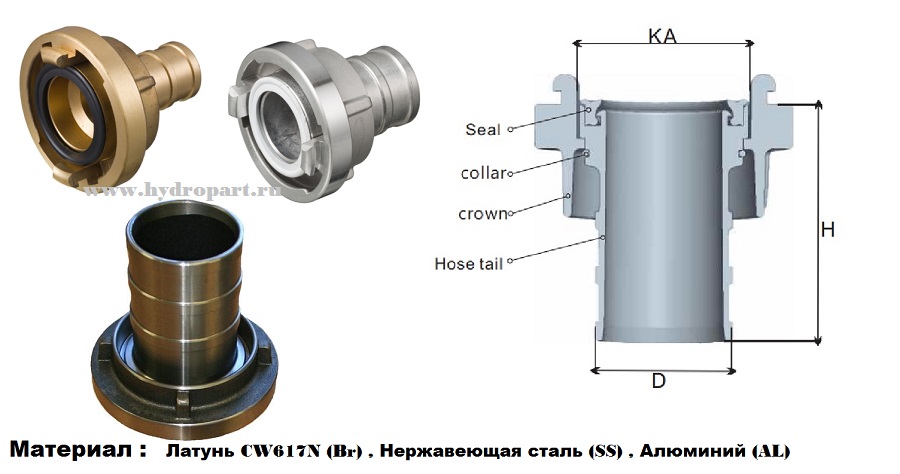

The first digit is the nominal size
The second digit is the outside diameter of the shank (D)
The third digit is the distance between the fangs (KA) in mm
