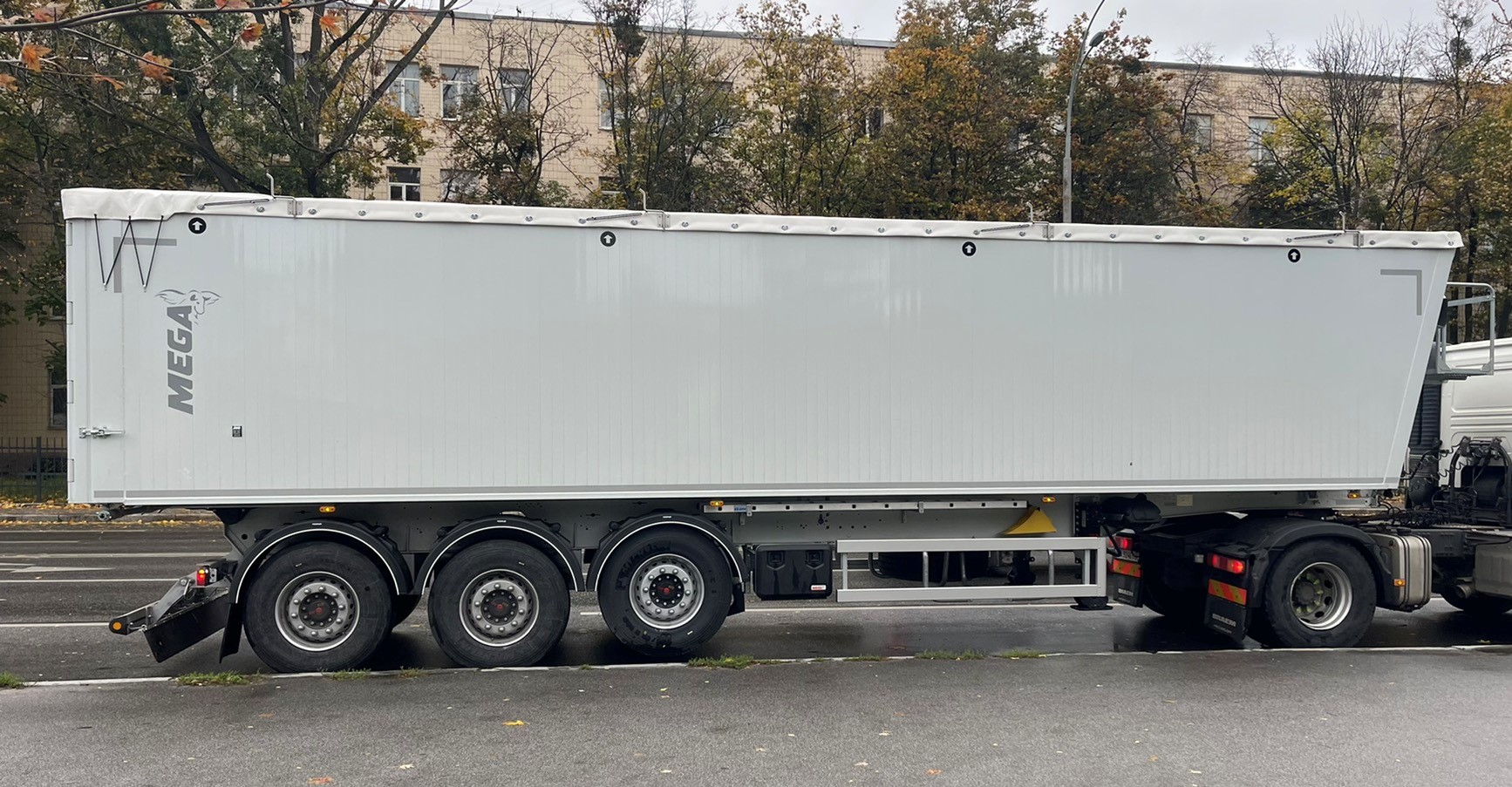

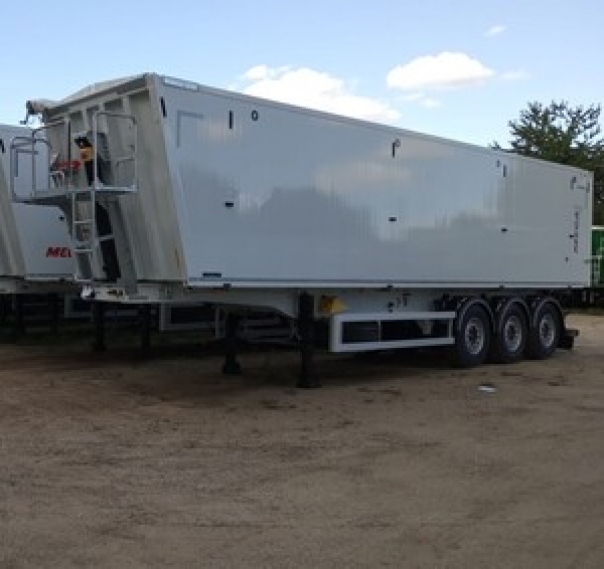

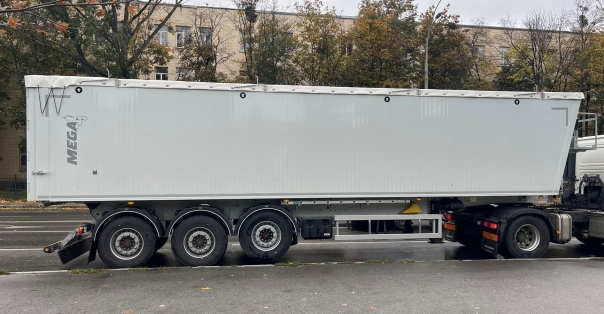

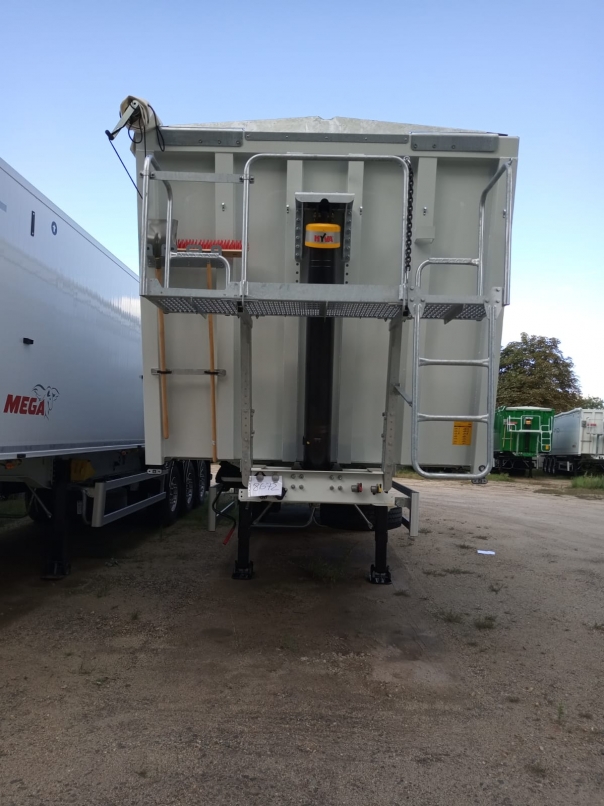

Mega grain carriers

Volume: 55m³
Own weight: 6400 kg ±2%
Body:
- housing made of special aluminum sheet and profiles, all-welded;
- side walls made of aluminum profiles with a total thickness of 29.5 mm, continuous welding;
- additional strengthening of the side walls of the body at the rear by adding an aluminum sheet inside;
- sloping front wall made of aluminum sheet (5 mm thick) with special reinforcing profiles for support;
- strengthening of the front corners (front wall with side walls, on the top side) with a screw steel structure;
- Floor made of HB110 aluminum sheet 7 mm thick.
Chassis:
- welded construction in high strength steel (Strenx), double T-section, with 2 longitudinal beams and a cross beam;
- chassis design to support 2 and 3 axles pulling the tractor heads;
- steel connecting plate with 2" king pin in accordance with DIN 74080;
- lateral aluminum protections on both sides, folding;
- rear aluminum bumper, foldable, with steel mounting supports, with multiple attachment points;
- support legs SAF, 2 speeds, max. weight 24 kg, static load 50 t;
- 2 individual spare wheel supports, fully galvanized, removable.
- axes SAF Intradisc CD, low maintenance costs;

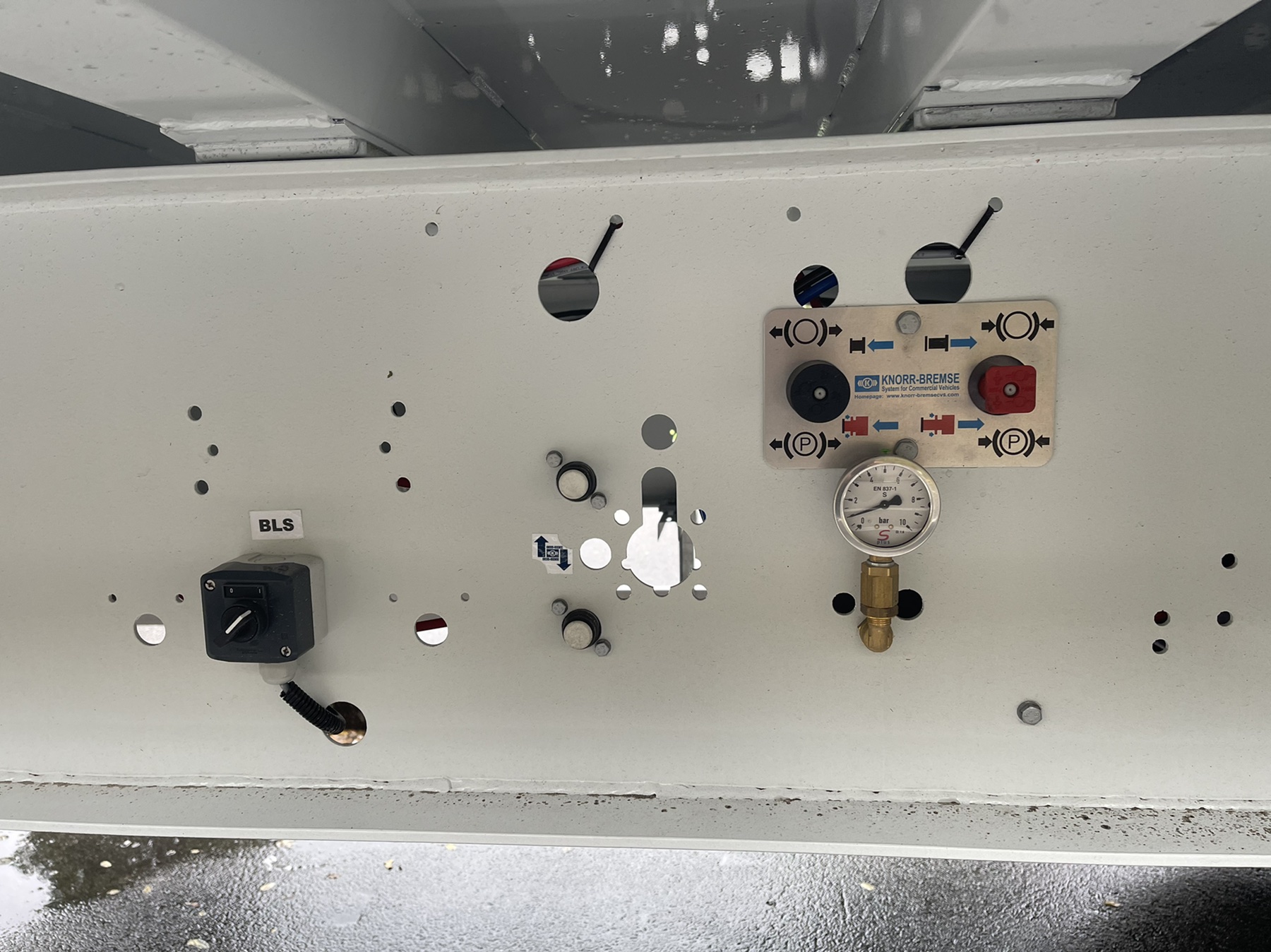

- pneumatic control unit Knorr-Bremse TESB G 2.2 iLvl;
- Disc brakes, EBS, 2S/2M, RSP (Roll Stability Program), 2-line brake circuit, automatic adjustments according to. RR EG 71/320, depending on electronic weight (1 ALB-Regler);
- air suspension, HS valve, automatic suspension level adjustment (iLvl);
- distance between axles - 1310 mm;
- BLS (Body Lift Sensor) - automatic lowering of the suspension during a rollover;
- electric suspension height adjustment;
- shock absorbers;
- steel air tanks;
- double brake chambers;
- Automatic lifting of the first axle, depending on the weight, the ability to control the brake pedal of the truck up to 20 km/h.
Hydraulics:

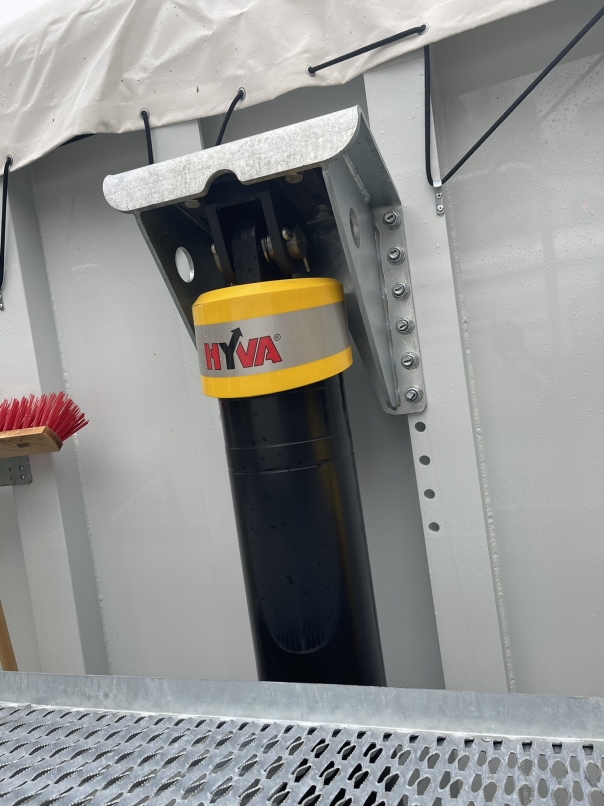

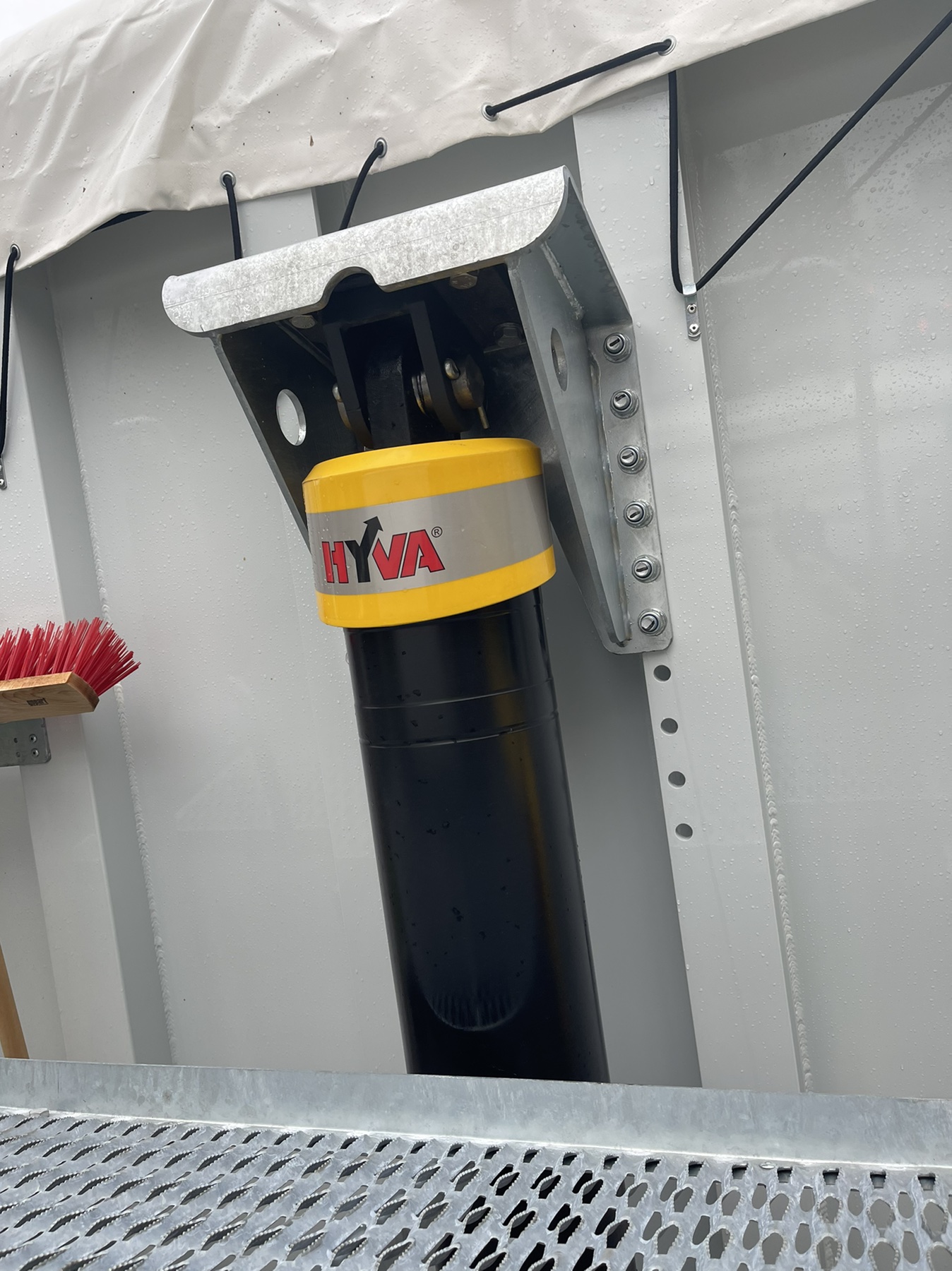

- overturning by frontal lifting, with Hyva hydraulic drive;
- hydraulic hose for connection to the tractor;
- body control system when returning to the chassis.

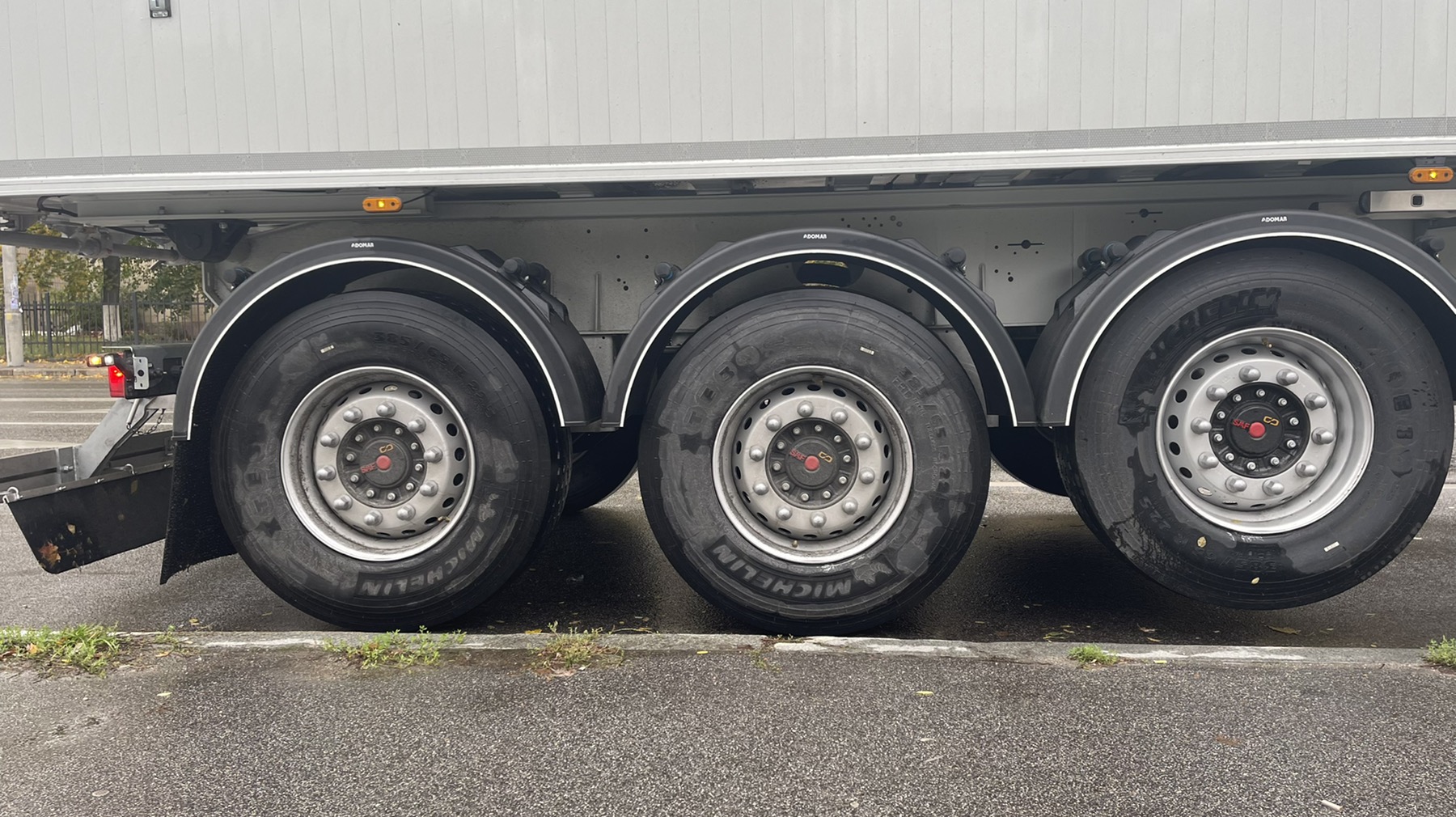

Wheels:
- 6 steel discs 11.75x22.5 ET120;
- 6x tires 385/65R22.5 160K (PREMIUM);
- full spare.
