Application
It is designed for autonomous measurement of parameters of liquid non-crystallizing media, including explosive ones, located in tanks and containers, during accounting, calculation and technological operations.
It is used in automation systems for oil, oil, oil and gas, gas, chemical, automotive, shipbuilding, water, utilities, pharmaceutical, food and other industries during accounting and technological operations.
Main objects of operation: gas stations, tank farms, oil refineries and other hazardous production facilities requiring the use of explosion-proof equipment; transport tanks, auto-, railway tanks; automation systems for the food and chemical industries, utilities.
Peculiarities
- anti-vandal case made of aluminum alloy.
Description

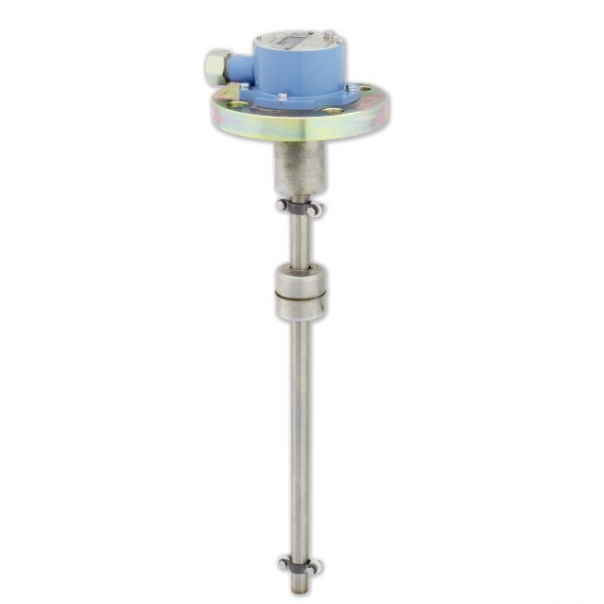

The design of the level gauge, the principle of measuring level, temperature, determining density, volume, mass are similar to the PMP-118 level gauge. Differences from the PMP-118 level gauge are in the presence of a built-in digital LED display, a control button and a built-in battery.
The level gauge is constantly in “sleep” mode – the display is off. A short press of the button puts it into the measurement and indication mode, after 5 seconds it goes back into the “sleep” mode.
There is an "alarm mode" used to control the overflow of the tank. In this mode, the signaling device periodically turns on independently and indicates, for example, the relative filling of the tank in percent. The duration of the mode is 1 hour.
