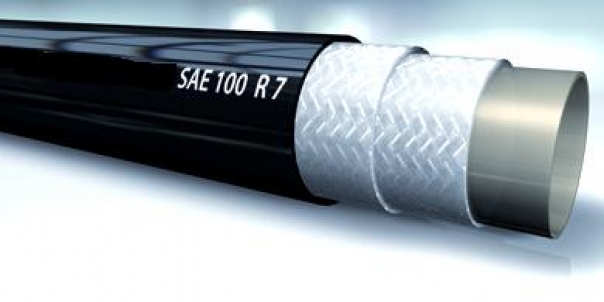

Hydraulic sleeve RVD (R7)

Hydraulic sleeve RVD R7 - inner layer: polyester, cord: polyester, outer layer: polyurethane (wear-resistant).

Add to cart

Sleeves of this type are used in various hydraulic and pneumatic lifts, brake systems, painters, washing machines (KARCHER type).

Very easy to use due to greater flexibility and lighter weight than steel cord high pressure hoses.

Inner layer: polyester, cord: polyester, outer layer: polyurethane (wear resistant).

Working temperature: -40°С +100°С.

The operating pressure varies with temperature. It is possible to manufacture a double sleeve.

Nominal diameter, mm	Int. diameter, mm	External diameter, mm	Pressure, operating/emergency, atm	Bending radius, mm	Weight, kg/m.rm.
03	3,5	8,5	230/920	30	57
04	4,0	8,9	250/1000	35	58
05	4,8	10,0	210/840	35	73
06	6,4	11,8	200/800	50	90
08	8,0	14,3	190/760	55	128
10	9,5	16,0	175/700	75	155
12	13,0	20,3	140/560	95	224
16	16,0	23,5	105/420	125	277
19	19,2	26,5	90/360	150	330
25	25,6	32,5	70/280	200	403
