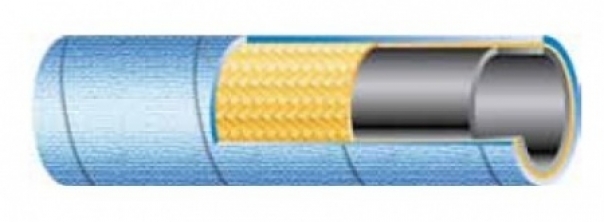

Design
Tube: special synthetic rubber resistant to hydraulic oils at high temperatures.
Cover: special synthetic rubber resistant to oils, abrasion and atmospheric conditions.
Reinforcement: 1 layer of high tensile steel braid.
Execution options:
DN |
Denomination designation |
Outside diameter |
Operating pressure |
Bursting pressure |
R min |
Weight pcs. |
|
mm |
mm |
bar |
bar |
mm |
g/m |
5 |
4.8 |
11.6 |
250 |
1000 |
90 |
190 |
6 |
6.4 |
13.2 |
225 |
900 |
100 |
235 |
8 |
8.0 |
14.8 |
215 |
850 |
115 |
275 |
10 |
9.5 |
17.2 |
180 |
720 |
130 |
355 |
13 |
12.7 |
20.4 |
160 |
640 |
180 |
435 |
16 |
16.0 |
23.5 |
130 |
520 |
200 |
500 |
20 |
19.0 |
27.5 |
105 |
420 |
240 |
635 |
25 |
25.4 |
35.4 |
88 |
350 |
300 |
930 |
32 |
31.8 |
43.5 |
63 |
250 |
420 |
1310 |
40 |
38.1 |
50.0 |
50 |
200 |
500 |
1480 |
50 |
50.8 |
63.6 |
40 |
160 |
630 |
2020 |
63 |
63.5 |
76.5 |
40 |
160 |
760 |
2670 |
76 |
76.2 |
88.5 |
35 |
140 |
900 |
2860 |
