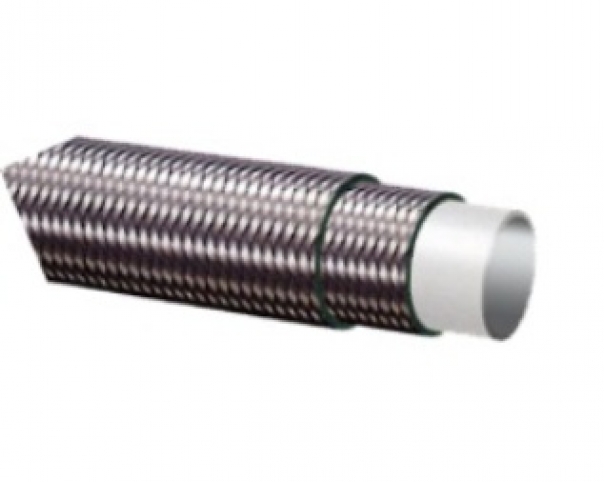

Sleeve for hydraulic and steam systems, chemical resistant.
Working medium: mineral oils (up to 40% aromatic content), polyglycol oils, rapeseed oils, bio oils, water, water-oil and water-glycol emulsions, steam and most chemicals.
Tube: Teflon 62, cord: 1 or 2 stainless steel braids. become.
Working temperature: -60°С +260°С. The operating pressure varies with temperature.
Characteristic table
|
Nominal diameter,
mm
|
Int. diameter,
mm
|
External diameter,
mm
|
Working/Bursting pressure,
atm
|
Bending radius,
mm
|
Weight,
kg/m.rm.
|
| 05 |
4,8 |
9,4 |
365/1250 |
30 |
126 |
| 06 |
6,4 |
10,8 |
365/1100 |
35 |
172 |
| 08 |
7,9 |
13,1 |
300/900 |
40 |
207 |
| 10 |
9,5 |
14,7 |
285/850 |
50 |
293 |
| 12 |
12,7 |
18,0 |
250/750 |
70 |
360 |
| 16 |
15,9 |
21,6 |
235/700 |
110 |
423 |
| 19 |
19,2 |
24,8 |
200/600 |
180 |
640 |
| 25 |
25,4 |
32,2 |
150/450 |
240 |
723 |
