HPH
Description

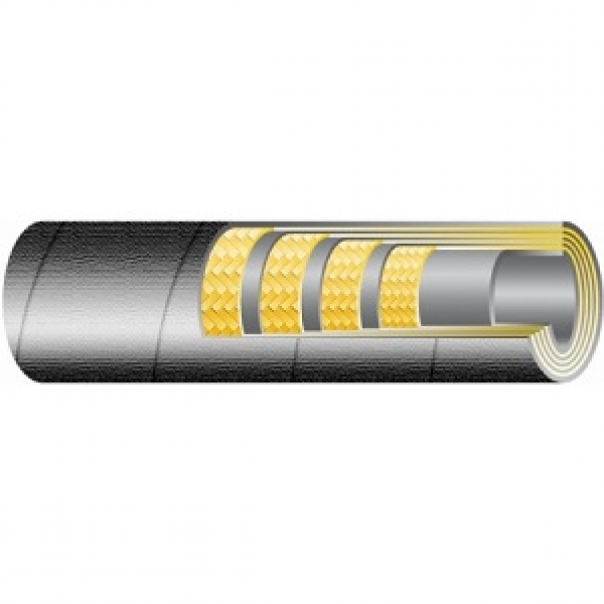

Design:
Tube: special synthetic rubber resistant to hydraulic, vegetable and mineral oils.
Cover: weather, abrasion and hydraulic oil resistant special synthetic rubber.
Reinforcement: high tensile steel braid (4 layers)
The sleeve of the 4SH series unlike 4 SP maintains much bigger pressure.
Versions 1:
| DN NW | Denomination designation | Outside diameter | Operating pressure | Test pressure | Bursting pressure | R min | Weight pcs. | |
| inch | mm | mm | bar | bar | bar | mm | kg/m | |
| 25 | 1 | 25.4 | 38.4 | 380 | 910 | 1520 | 340 | 2.145 |
| 32 | 1 1/4 | 31.8 | 45.2 | 325 | 975 | 1300 | 460 | 2.500 |
| 40 | 1 1/2 | 38.1 | 53.0 | 290 | 700 | 1160 | 560 | 3.330 |
| 50 | 2 | 50.8 | 67.6 | 250 | 600 | 1000 | 700 | 4.595 |
Versions 2:
|
Int. diameter, mm |
External diameter, mm |
External metal diameter. braids, mm |
Working pressure, atm |
Bursting pressure, atm |
Bending radius, mm |
The weight, kg/m.linear |
| 15,9 | 28,5 | 25,3 | 450 | 1800 | 250 | 1,370 |
| 19,0 | 32,2 | 28,4 | 430 | 1720 | 280 | 1,600 |
| 25,4 | 38,7 | 35,2 | 400 | 1600 | 340 | 2,060 |
| 31,8 | 45,2 | 41,9 | 360 | 1440 | 460 | 2,566 |
| 38,1 | 53,5 | 48,8 | 300 | 1200 | 560 | 3,420 |
| 50,8 | 68,1 | 63,1 | 250 | 1000 | 700 | 4,500 |
