HPH

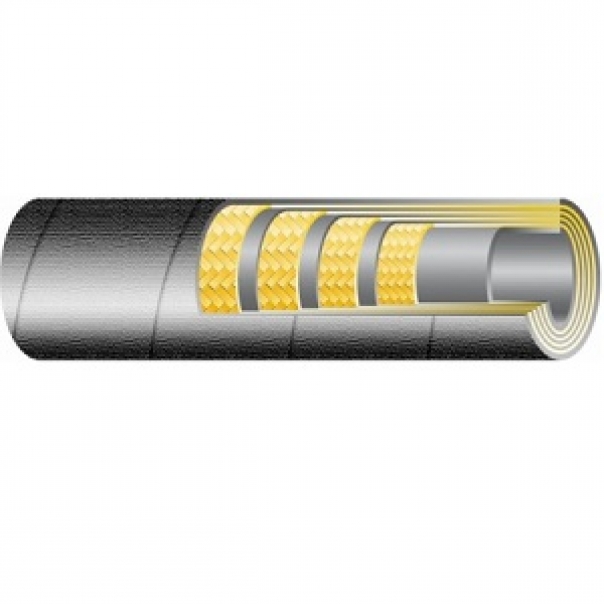

Hydraulic hose (4SP)

The 4SP series hose is designed for hydraulic systems with high pressure peaks and difficult working conditions.

Add to cart

Design:

Tube: Glycol, vegetable, mineral and hydraulic oil resistant special synthetic rubber.

Cover: abrasion, weather and hydraulic oil resistant special synthetic rubber.

Reinforcement: high tensile steel braid (4 layers)

Versions 1:

4SP2

Versions 2:

4SP

Int. diameter, mm	External diameter, mm	External metal diameter. braids, mm	Working pressure, atm	Bursting pressure, atm	Bending radius, mm	The weight, kg/m.linear
6,4	17,9	14,7	450	1800	150	0,64
9,5	21,4	17,5	445	1780	180	0,82
12,7	24,6	20,2	415	1660	230	0,87
15,9	28,2	23,8	350	1400	250	1,19
19,0	32,2	28,2	350	1400	300	1,49
25,4	39,7	35,3	280	1120	340	2,02
31,8	50,8	46,0	210	840	460	3,05
38,1	57,2	52,4	185	740	560	3,51
50,8	69,8	65,3	165	660	660	5,20

We are provider of customized solutions. This is our competitive advantage.

We trade and service only quality products by the best prices and delivery terms.

We aim to long-term mutually beneficial partnership.
