Properties:

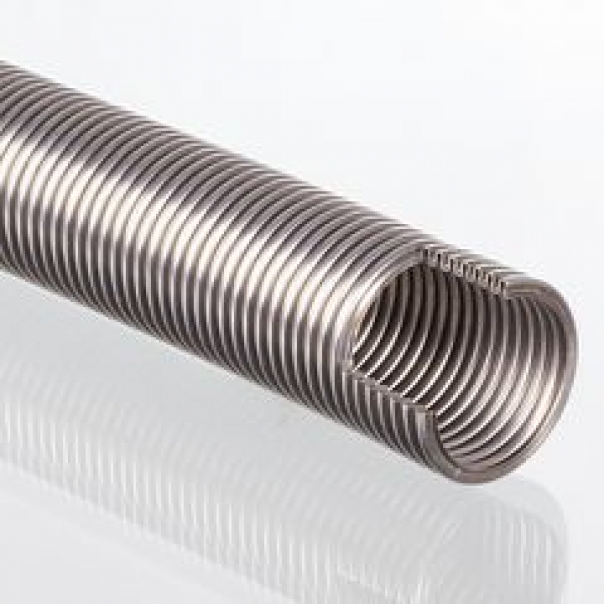

Execution - with parallel corrugation, single-walled, shallow corrugation
Hose material - stainless steel 1.4404
Properties - the used production material provides reliable corrosion resistance perfectly adapted to work with aggregate
Braid - no braid
DIN EN ISO 10380
Temperature min.-200 °C
Temperature max. 550°C
Execution options:
| Name |

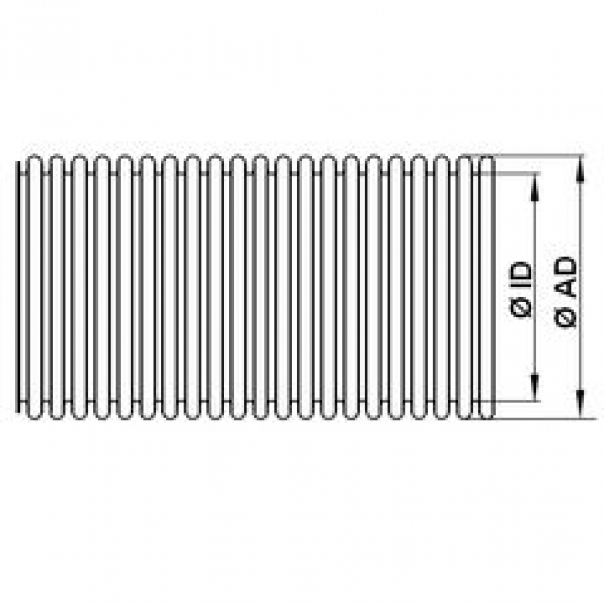

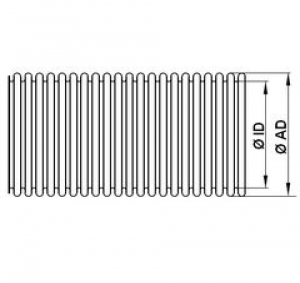

Ø ID
mm |
Ø AD
mm |
Tolerances Dv / Dn
mm |
Bending radius, static
mm |
Bending radius, dynamic
mm |
Working pressure at 20°C (stat.)
bar |
Weight per m
kg |
Produced length (m) |
| KBO 006 |
6.10 |
9.80 |
0.20 |
15 |
80 |
18 |
0.072 |
10 to 100 |
| KBO 008 |
8.20 |
12.30 |
0.20 |
16 |
125 |
13 |
0.086 |
10 to 100 |
| KBO 010 |
10.05 |
14.30 |
0.20 |
18 |
129 |
6 |
0.101 |
10 to 100 |
| KBO 013 |
12.20 |
16.70 |
0.20 |
20 |
140 |
6 |
0.116 |
10 to 100 |
| KBO 016 |
16.20 |
21.60 |
0.20 |
28 |
160 |
5 |
0.176 |
10 to 100 |
| KBO 020 |
20.20 |
26.80 |
0.20 |
32 |
170 |
3 |
0.252 |
10 to 100 |
| KBO 025 |
25.40 |
32.20 |
0.30 |
40 |
190 |
2.5 |
0.336 |
10 to 100 |
| KBO 032 |
34.30 |
41.10 |
0.30 |
50 |
260 |
2 |
0.428 |
10 to 100 |
| KBO 040 |
40.00 |
49.80 |
0.30 |
60 |
300 |
2 |
0.706 |
10 to 100 |
| KBO 050 |
50.20 |
60.30 |
0.40 |
70 |
320 |
0.5 |
0.894 |
10 to 100 |
