Properties:
Execution - with parallel corrugation, single-walled, usual corrugation
Hose material - stainless steel 1.4541
Braid - 2 braids from 1.4301
DIN EN ISO 10380
Temperature min. -200°C
Temperature max. 550°C
Approval - Approval for all gases according to DVGW Worksheet G 260, DIN 3384 from NW 65
Execution options:
| Name |

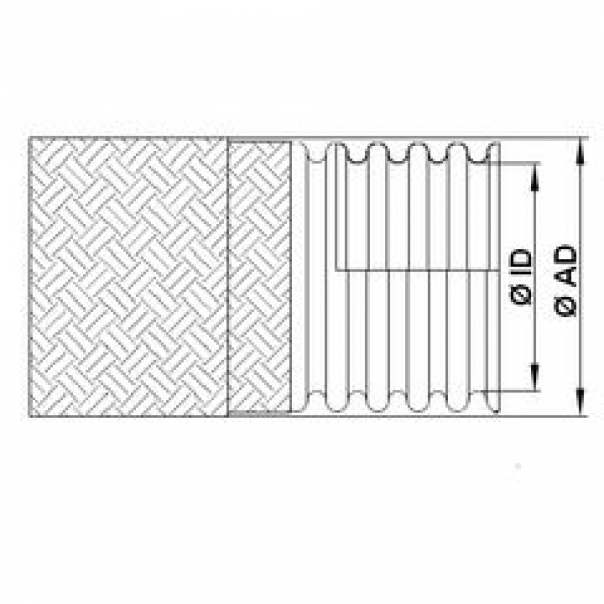

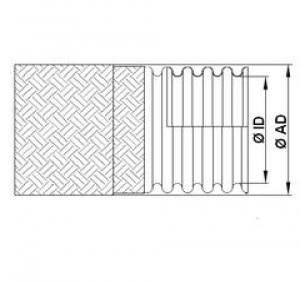

Ø ID
mm |
Ø AD
mm |
Tolerances Dv / Dn
mm |
Bending radius, static
mm |
Bending radius, dynamic
mm |
Working pressure at 20°C (stat.)
bar |
Weight per m
kg |
Produced length (m) |
| ICB 010 |
10.60 |
19.00 |
1.00 |
35 |
205 |
105.0 |
0.400 |
On request |
| ICB 013 |
12.30 |
21.00 |
1.00 |
35 |
225 |
100.0 |
0.470 |
On request |
| ICB 016 |
15.70 |
26.70 |
1.20 |
45 |
305 |
90.0 |
0.580 |
On request |
| ICB 020 |
19.80 |
31.80 |
1.20 |
55 |
330 |
75.0 |
0.760 |
On request |
| ICB 025 |
25.80 |
37.40 |
1.20 |
70 |
385 |
65.0 |
0.960 |
On request |
| ICB 032 |
33.00 |
47.70 |
1.20 |
80 |
415 |
50.0 |
1.520 |
On request |
| ICB 040 |
40.00 |
56.00 |
1.40 |
100 |
490 |
40.0 |
1.770 |
On request |
| ICB 050 |
51.60 |
69.50 |
1.40 |
130 |
570 |
32.0 |
2.300 |
10 to 12 |
| ICB 065 |
66.00 |
90.40 |
1.60 |
175 |
685 |
25.0 |
3.800 |
10 to 12 |
| ICB 080 |
76.50 |
102.50 |
1.60 |
200 |
770 |
22.0 |
4.350 |
10 to 12 |
| ICB 100 |
103.00 |
130.00 |
1.60 |
250 |
960 |
20.0 |
6.300 |
10 to 12 |
