HPH

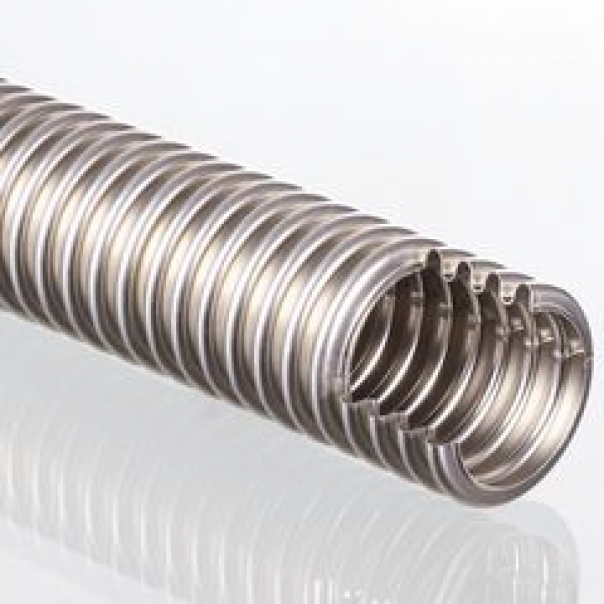

High pressure metal hose (FBO)

Due to the special shape of the corrugation, the FBO high pressure metal hose is suitable for use in the food and chemical industries

Add to cart

Properties:

Execution - ring corrugation, single-walled, wide corrugated

Hose material - stainless steel 1.4404

Hose line according to DIN 2827

Braid - no braid

DIN EN ISO 10380

Temperature min. -200°C
Temperature max. 550°C

Execution options:

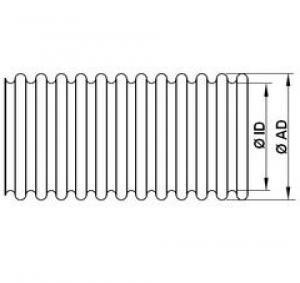

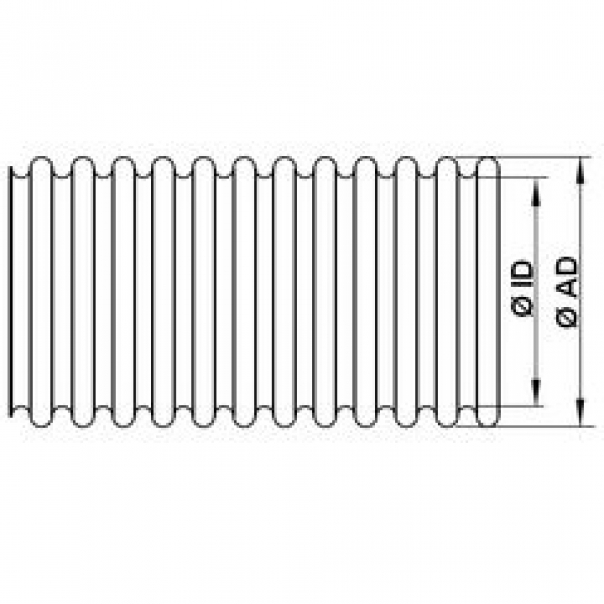

Name	Ø ID mm	Ø AD mm	Tolerances Dv / Dn mm	Bending radius, static mm	Working pressure at 20°C (stat.) bar
FBO 006	6.20	9.80	0.30	10	18
FBO 008	8.50	13.60	0.30	14	14
FBO 010	10.40	16.20	0.30	16	10
FBO 013	12.40	18.60	0.40	24	12
FBO 016	15.40	22.50	0.40	29	7.5
FBO 020	20.30	28.30	0.40	35	4.3
FBO 025	25.40	34.80	0.40	42	3
FBO 032	32.30	43.40	0.50	51	3.3
FBO 040	40.20	52.40	0.50	61	2.2
FBO 050	50.00	64.80	0.60	73	2.1
FBO 065	64.90	80.90	0.70	89	1.3
FBO 080	79.60	99.60	0.80	108	1.5
FBO 100	101.50	126.50	0.80	126	0.5
FBO 125	126.00	152.00	1.00	147	0.4
FBO 150	149.00	174.00	1.00	169	0.3
