HPH

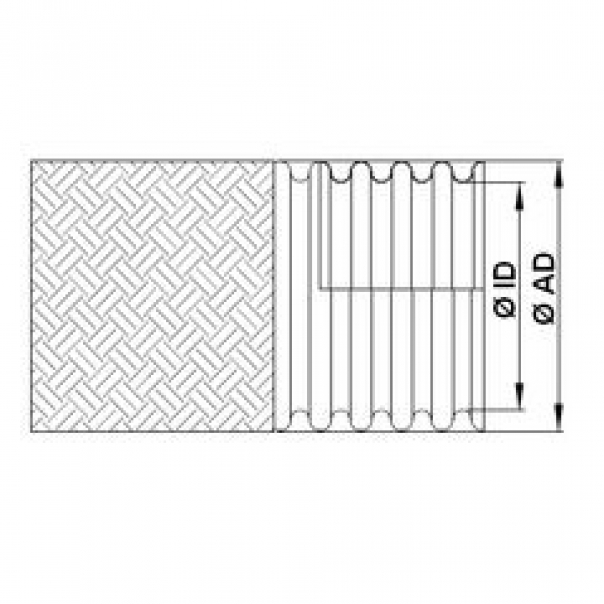

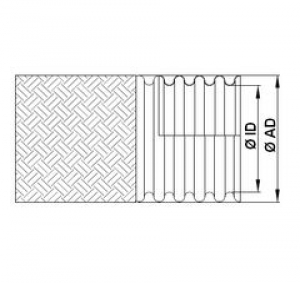

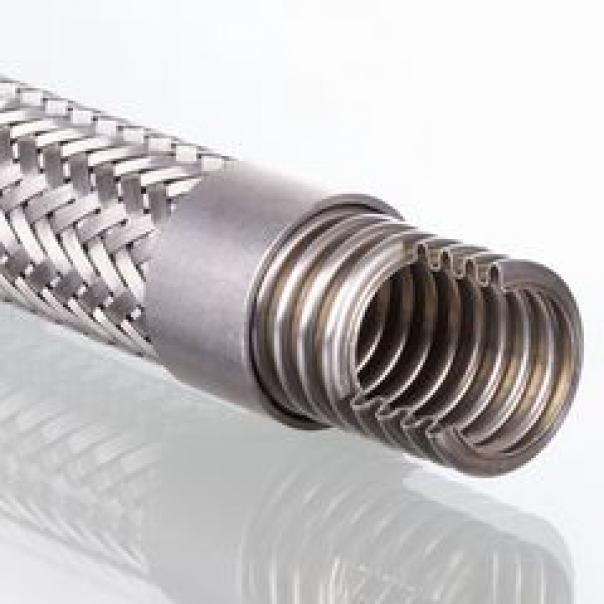

High pressure metal hose (DCA S)

Metal Hose DCA S Due to its thick wall design, this hose is very well suited for high pressure applications.

Add to cart

Properties:

Execution - with parallel corrugation, thick-walled, shallow corrugation

Hose material - stainless steel 1.4541

Braid - 1 braid made of 1.4301

Temperature min. -200°C
Temperature max. 550°C

Execution options:

Name	Ø ID mm	Ø AD mm	Tolerances Dv / Dn mm	Bending radius, static mm	Bending radius, dynamic mm	Working pressure at 20°C (stat.) bar	Weight per m kg	Produced length (m)
DCA 020 S	19.50	30.00	0.40	55	600	75	0.800	On request
DCA 025 S	25.60	38.10	0.40	70	680	60	1.120	On request
DCA 032 S	32.60	45.70	0.40	80	750	50	1.450	On request
DCA 040 S	39.60	54.00	0.50	100	850	45	1.820	10 to 12
DCA 050 S	51.00	67.50	0.50	130	960	40	2.900	10 to 12
DCA 065 S	65.50	87.80	0.60	175	1050	35	3.900	10 to 12
DCA 080 S	76.10	99.90	0.06	200	1280	25	4.200	10 to 12
DCA 100 S	102.40	127.40	1.00	250	1430	20	6.200	10 to 12
DCA 125 S	127.50	154.50	1.00	325	1700	16	5.800	10 to 12
DCA 150 S	151.50	180.00	1.00	375	2100	12.5	6.800	10 to 12
