Dirt filters are used to effectively remove particulate matter such as rust, sand and other particles from aviation fuel.

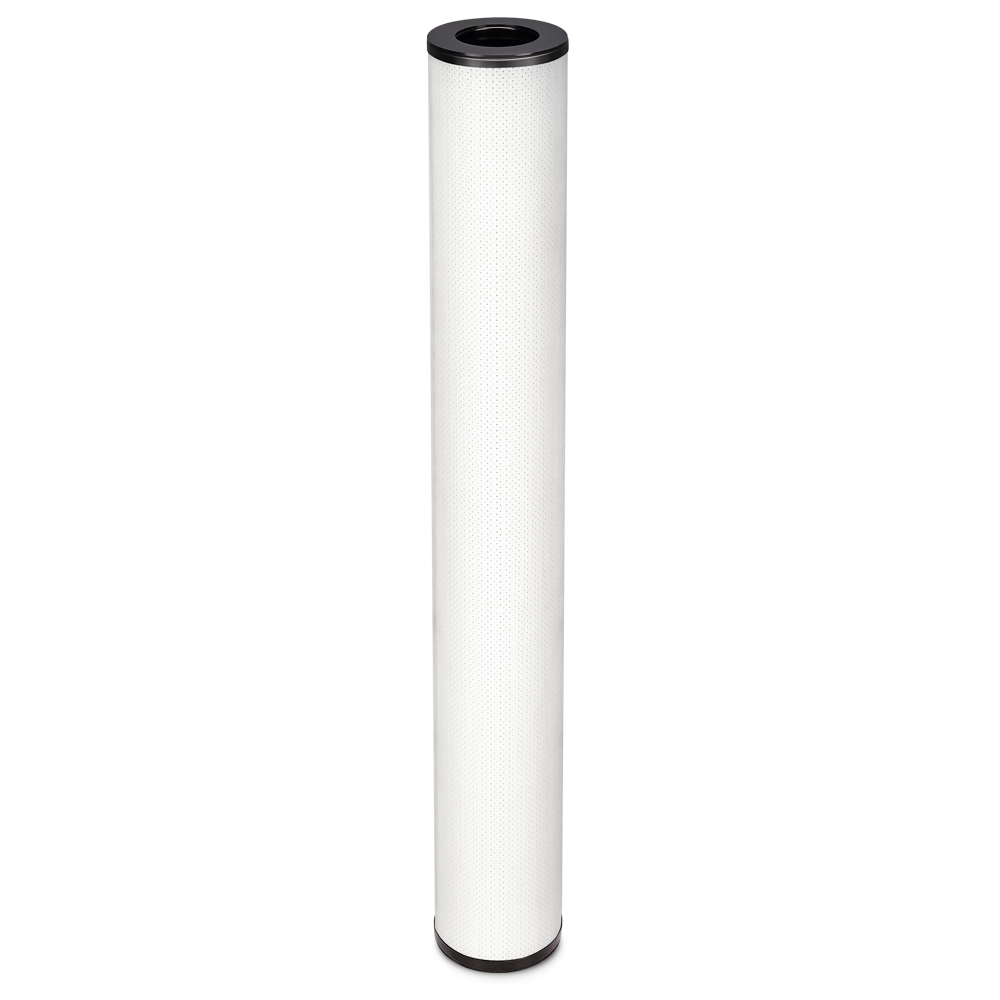

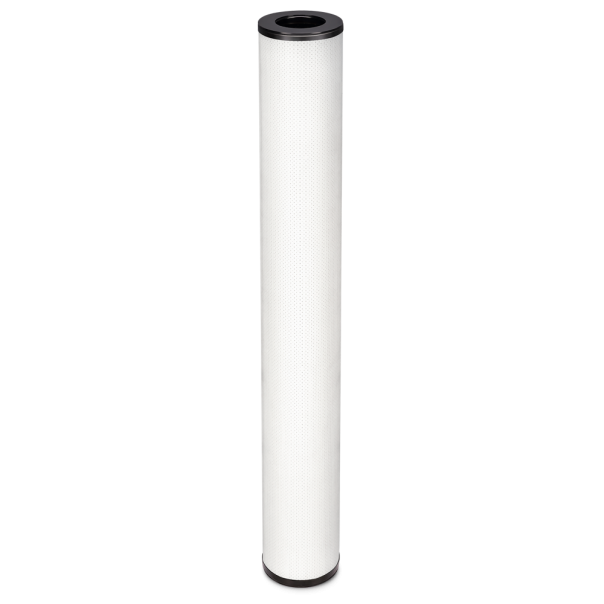

FAUDI Aviation DDO type filter elements are mainly used for aviation fuel filtration in mobile aircraft refueling. Dirt filters are an economical and reliable alternative to filter monitors, solving the related SAP* (Super Absorbent Polymer) problem.
Dirt filters must be used in conjunction with the AFGUARD® Electronic Water Sensor (EWS). EWS technology becomes the go-to source for maximum filter element performance and life - we simply call it PerformanceBasedFilterLife™.
Specifications
- Qualification: EI 1599 2nd Edition
- Nominal Filtration Degree: According to EI 1599 2nd Edition
- Flow direction: from outside to inside
- Permissible operating differential pressure: 1.5 bar (22 psi) in accordance with the JIG standard / 1.0 bar (15 psi) in accordance with the ATA 103 specification.
- Duration of use (max.): 60 months*
- Shelf life (max.): 60 months*
- Permissible operating temperature: min -30°C (-22°F) / max 80°C (176°F)
*Manufacturer's recommendation
standard design
- Outer diameter: 152 mm (6 inches)
- Support body: steel, painted
- Seals: NBR (Buna-N)
- End plates: glass fiber reinforced polyamide / epoxy coated steel
- End plate markings: according to EI specification
